1.8m Lightweight Canopy Electric Tricycle

Max speed: 40km/h

From the procurement of parts to the end of the vehicle, an international standard quality management system is implemented throughout the entire process to ensure that every electric vehicle meets or even exceeds the relevant safety and environmental protection regulations at home and abroad.

Customized Services: We offer tailored design and optimization services for functions, appearance, configuration, etc., to meet unique requirements.

Get a free quote

Product Description

Model	1.8m Lightweight Canopy Electric Tricycle for Passenger and Cargo Transport
Basic configuration of the whole vehicle		Basic configuration of the power system
Vehicle size(L×W×H)	330013001750mm	Motor	1800W 70H Permanent Magnet Motor
Vehicle size(L×W×H)	330013001750mm	controller	30MOS tubes
Container size(L×W)	1800*1300mm	maximum speed	40km/h
Seat height	700mm	Maximum torque	40N.m
Ground clearance	160mm	start mode	Electronic control
Track width	1160mm	storage battery
Curb weight	320kg	Mileage driven	Reference battery data
Load capacity mass	1000kg	Other configurations
Tire Size	F:5.00-12/R:5.00-12	Phone charging	Possess
Braking method	F:drake hub-130/R:drake hub-180	Bluetooth audio	Possess
Rear axle	Integral 180 fully suspended six-rib rear axle	Fringe curtain	Not have
Front suspension	43External spring damping	Alternator	Not have
Rerr suspension		Packaging method	Parts and components
Rerr suspension	Dual steel plate assembly structure, five-leaf spring non-load-bearing type	Windshield wiper	Not have
Instrument	LCD instrument	Cargo box	Regular cargo doors
Headlamps	LED headlight
Factory price in RMB	RMB（No volume with tax）
Remarks	Invoice point 10% Price includes factory loading fee

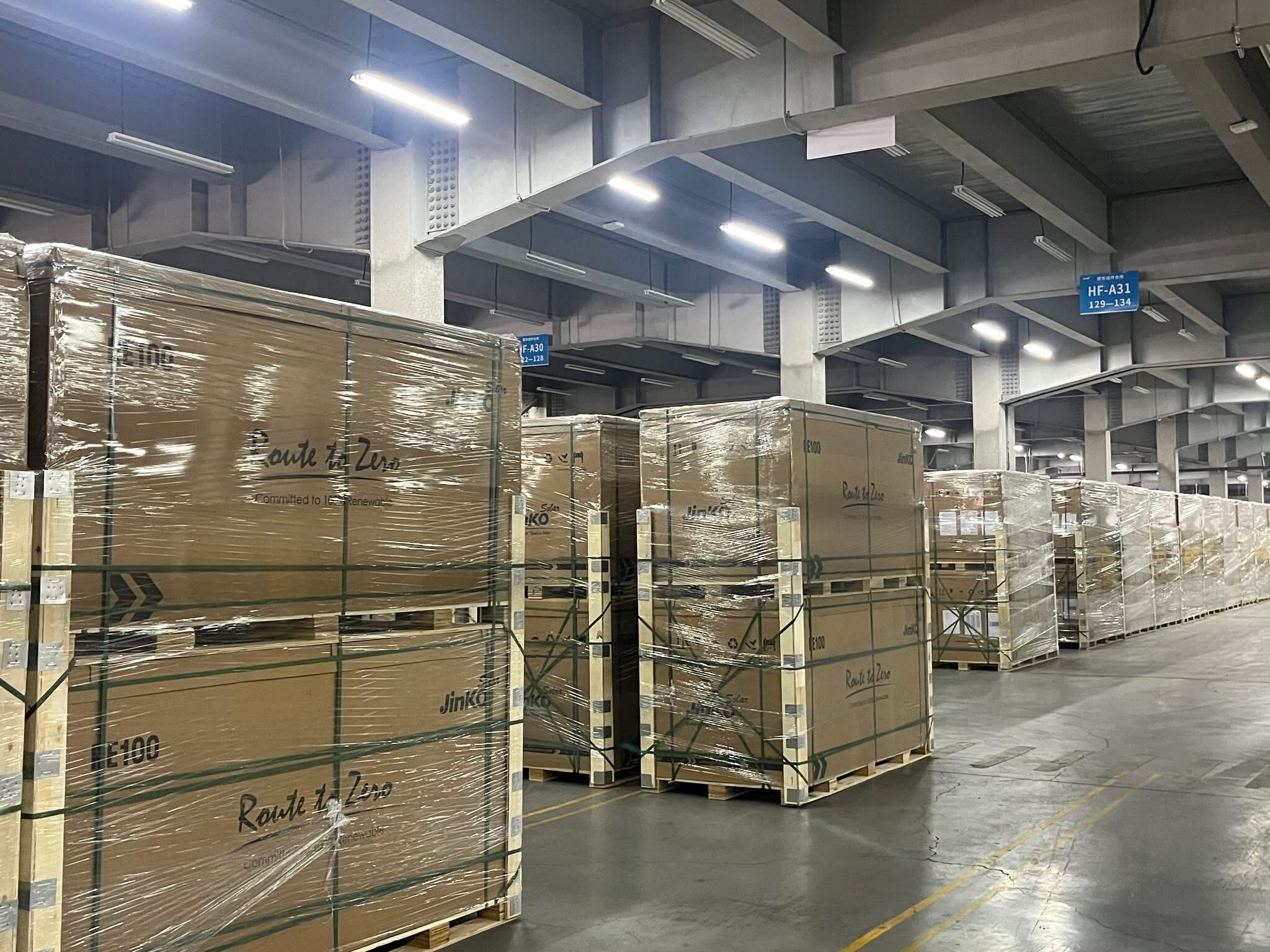

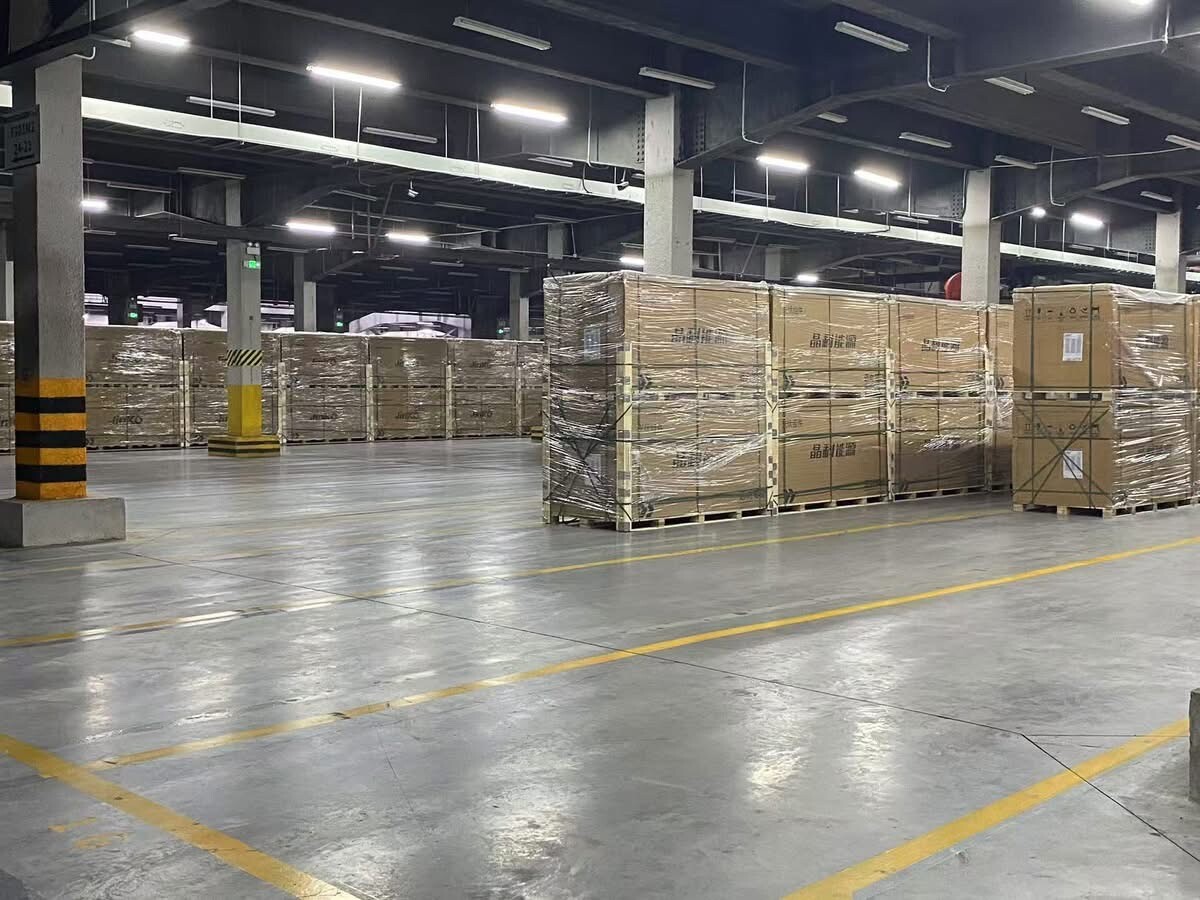

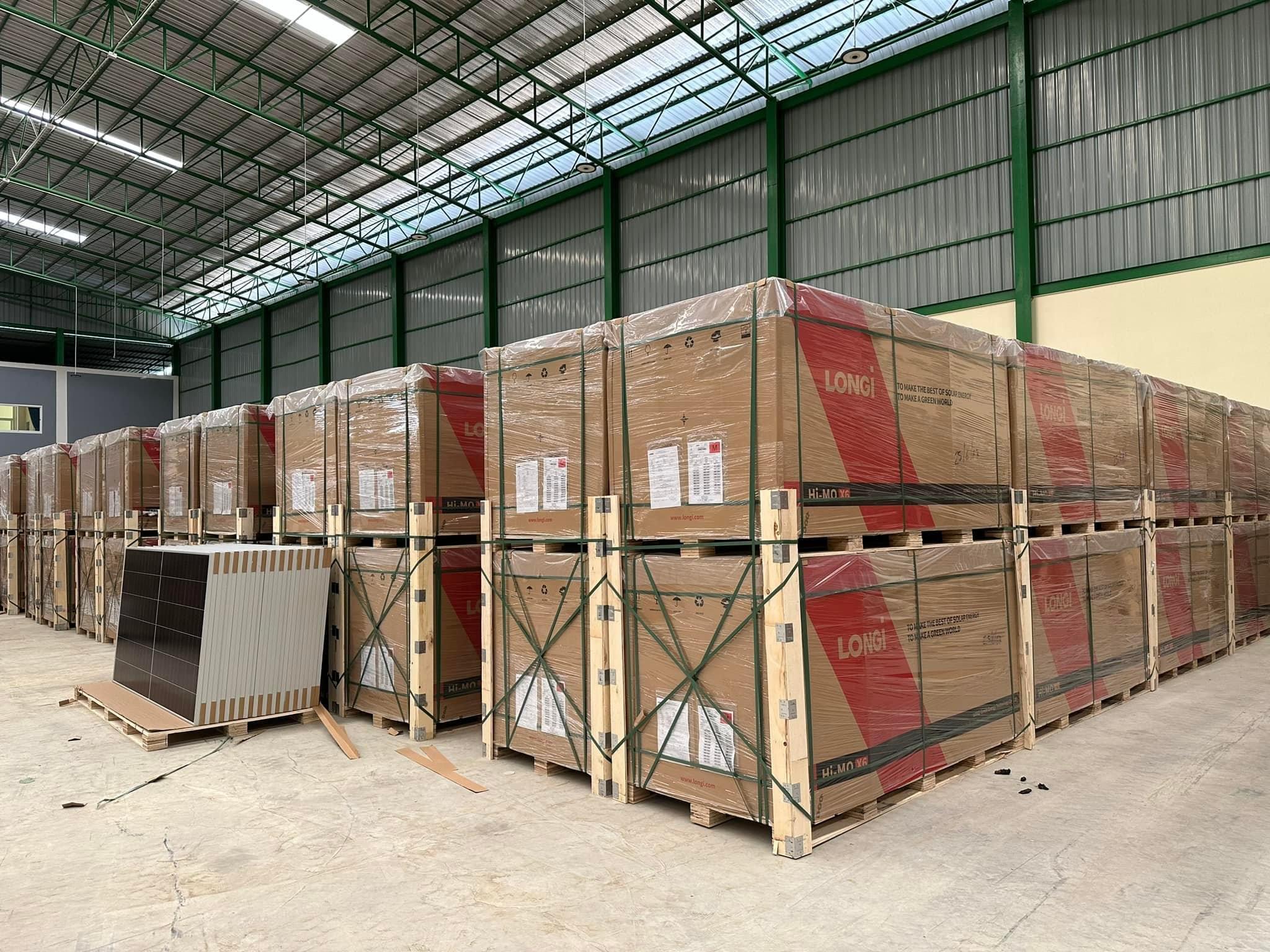

Warehouse shooting
